Custom Popcorn Machine Motor
Fengtech specializes in providing customized motor design services for popcorn machine factories and manufacturers. These motors efficiently drive the internal rotating mechanisms of the equipment, ensuring that cooking oil and raw ingredients are thoroughly mixed to produce delicious, enticing, and mouth-watering popcorn.
We primarily utilize shaded-pole motors and AC synchronous motors. These solutions not only offer exceptional cost-effectiveness but also boast outstanding durability, making them the ideal choice for powering a wide range of small to medium-sized popcorn machines currently on the market.
The Function of a Popcorn Machine Motor
• Drives the Stirring Rod: Prevents uneven heating of corn kernels, avoids localized scorching, increases the popping rate, and ensures a consistent texture.
• Enhances Equipment Efficiency: Reduces popcorn production time, increases the output per batch, and facilitates continuous production (suitable for commercial equipment).
• Integrates with the Drive Mechanism: Gearbox, coupling, and stirring shaft.
Motor Selection for Popcorn Machines
• Torque: Requires sufficient stirring power to prevent jamming; typically paired with a geared motor.
• Speed Range: Low speed (approx. 20–100 RPM); excessive speed can negatively impact the popping efficiency.
• Voltage Type: 110V, 220–240V.
• Operating Environment: High-temperature resistant, grease-resistant, and capable of continuous operation over extended periods.
• Noise Control: Less than 50 dB; low noise levels are required in environments such as cinemas and shopping malls.

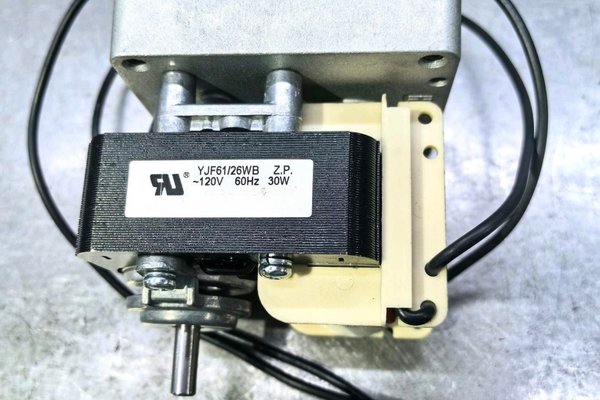

Real Shot

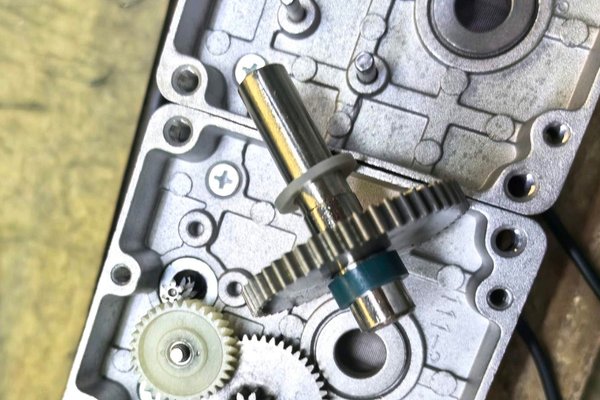

Internal Parts

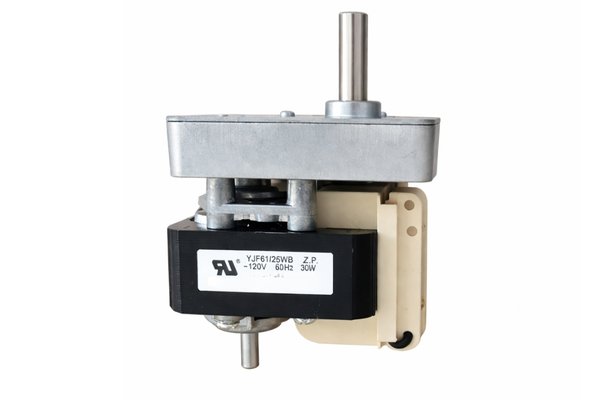

Output Shaft

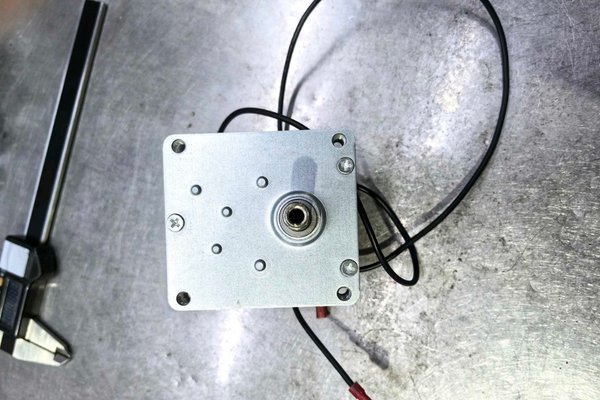

Motor Housing
Popcorn Motor Selector
Popcorn Machine Motor Manufacturing Cases
Silnik z zacienionym biegunem
| 1. Rated Characteristics | |||
|---|---|---|---|
| No. | Item | Specification | Remark |
| 1.1 | Operating Voltage | AC120V±10% 60Hz | |
| 1.2 | Noload Current | 0.7A max | |
| 1.3 | Output Speed | 25RPM ± 10% | |
| 1.4 | Rotation | CW | |
| 2. Electrical Characteristics | |||
| 2.1 | Noload Power | ≤ 36 W | |
| 2.2 | Stall Torque | 26 kgf.cm max | |
| 2.3 | Running Torque | 20 kgf.cm max | |
| 2.4 | Start Torque | 20 kgf.cm max | |
| 2.5 | Insulation Class | Class E | |
| 2.6 | Insulation Res. | 100M Ohm Min | |
| 3. Mechanical Characteristics | |||
| 3.1 | Outline Dimension | As Outline Drawing | |
| 3.2 | Noise(1m) | 45 Db(A) Max | |
Silnik synchroniczny prądu przemiennego
| No. | Item | Specification | Remark |
|---|---|---|---|
| 1.1 | Voltage/Frequency | AC220V/60Hz | |
| 1.2 | No-load Power | ≤ 14W | |
| 1.3 | No-load Current | ≤ 0.07A | |
| 1.4 | Rated Speed | 42RPM | |
| 1.5 | Rotation | CCW | |
| 2.1 | Rated Torque | ≥ 11kgf.cm | |
| 2.2 | Noload Current | ≤ 0.4 A | |
| 2.3 | Dielectric Strength | AC1800V 50Hz/sec | |
| 2.4 | Insulation Class | B | |
| 2.5 | Insulation Resistance | Ambient: ≥100 M; Hot: ≥5 M | |
| 2.6 | Noise Levels | ≤50db |
| No. | Item | Specification | Remark |
|---|---|---|---|
| 1.1 | Voltage/Frequency | AC120V/60Hz | |
| 1.2 | No-load Power | ≤ 22W | |
| 1.3 | No-load Current | ≤ 0.2A | |
| 1.4 | Rated Speed | 18RPM | |
| 1.5 | Rotation | CCW | |
| 2.1 | Rated Torque | ≥ 20kgf.cm | |
| 2.2 | Noload Current | ≤ 0.4 A | |
| 2.3 | Dielectric Strength | AC1800V 50Hz/sec | |
| 2.4 | Insulation Class | B | |
| 2.5 | Insulation Resistance | Ambient: ≥100 M; Hot: ≥5 M | |
| 2.6 | Noise Levels | ≤50db |
