Slush Machine Motor
Slush Machine for Home (3-5L)
Motor: M1, maximum torque 2.5N.m, RS-485 interface, overvoltage, overcurrent, and stall protection, customizable shaft.
Control board: full voltage adaptation, high-power compressor relay, early detection of frozen cylinder, and safety protection algorithm.

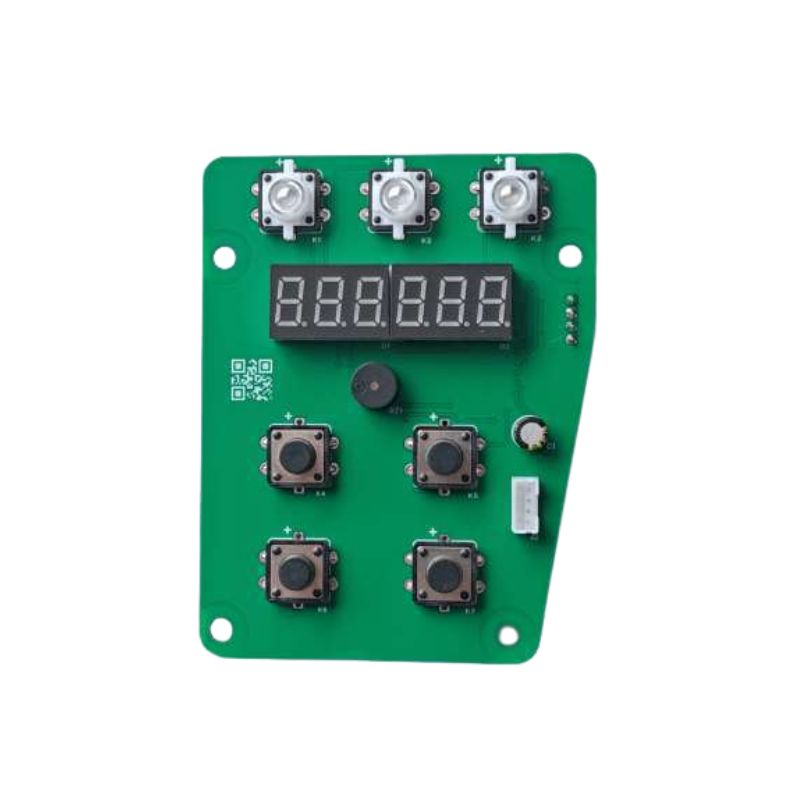

Other accessories: dedicated display panel, temperature sensor and wiring harness

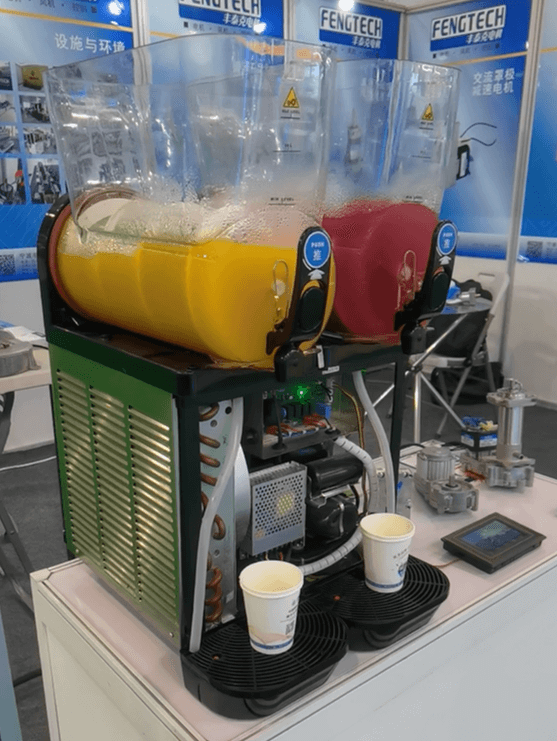

Commercial Slush Machine (5-15L)
Motor: YJF6440, maximum torque 8 N.M, speed 34 RPM, output power 25W.
FAS-BL60, maximum torque 12 N.M, speed 30 RPM, output power 20W.
Intelligent controller: adapt to a variety of raw materials, including low-sugar beverages, coffee drinks, alcoholic beverages, etc.
Fengtech - Slush Machine Motor R&D History
Fengtech has been focusing on the research and development and manufacturing of slush machine motors since 2017, starting with commercial slush machine motors and subsequently developing control panels, protection systems, and testing systems. We also have a dedicated laboratory and testing equipment for slush machine products to facilitate ongoing optimization.
2017

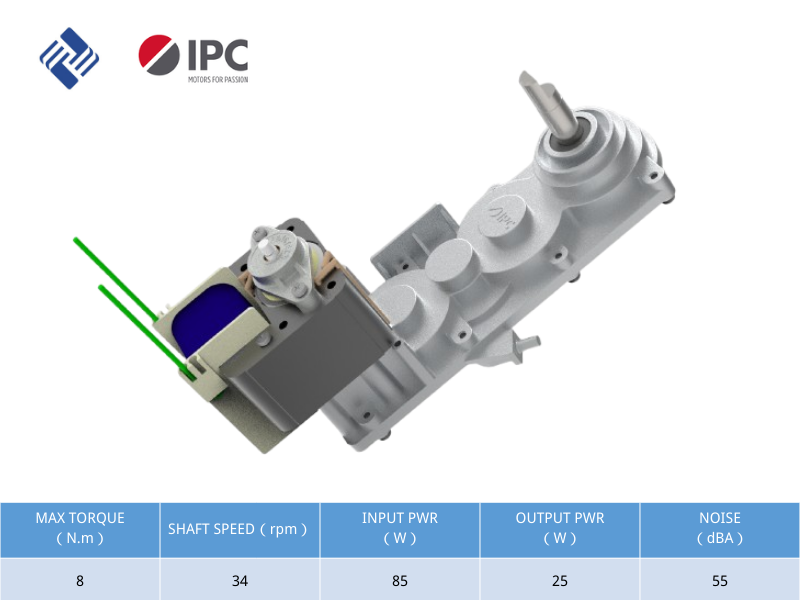

YJF6440
In 2017, in cooperation with IPC, we developed shaded pole gear motor for slush machine.
2019

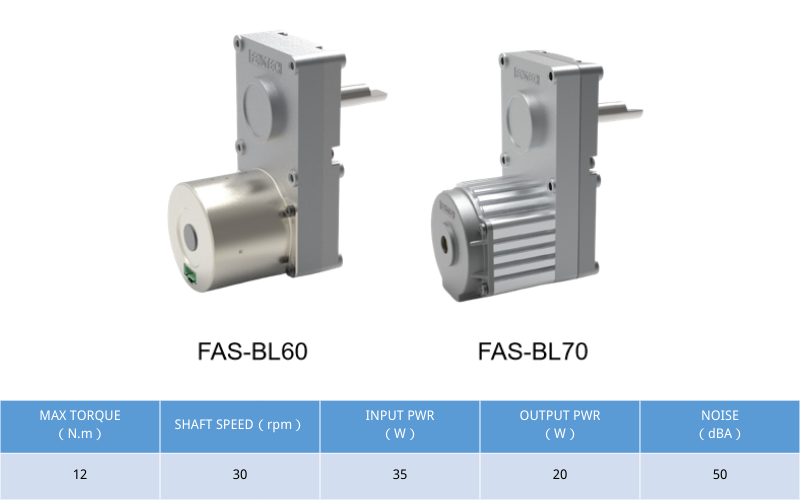

FAS-BL60, FAS-BL70
After deep-understanding the requirements for slush machines and the bottlenecks in the industry in 2019, we introduced a brushless DC motor solution to replace the AC motor for better performance.
2019
Smart Slush Machine Controller
Prevents the cylinder from being frozen.
Adapt to a variety of different raw materials including low-sugar beverages, coffee drinks, alcoholic beverages, etc.
2021

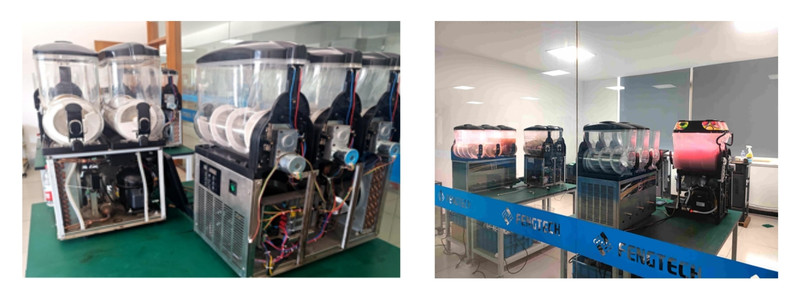

Laboratory for Slush Machine
We have multiple brands of slush machines for the testing (CarpiGiani, Bunn, Chinese Brand).
2022

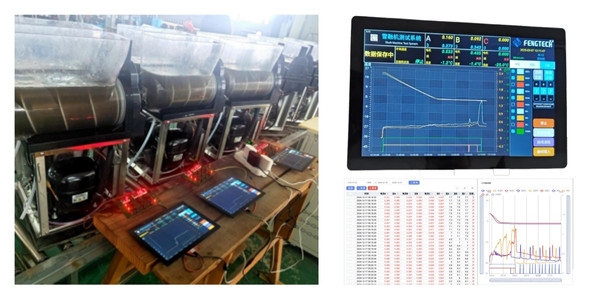

Testing System for Slush Machine
We develop a testing system for the slush machine. It can record the temperature change during the working process, the working status of the solenoid valve, compressor and motor. It also is a good tool for helping us to optimize the control logic.
2024
Testing System for Slush Machine
In 2024, building on the success of commercial slush machine motors, we developed motors and control systems for household slush machines. These systems inherit the characteristics of commercial motors such as high efficiency and low noise, and have been adopted by multiple clients.

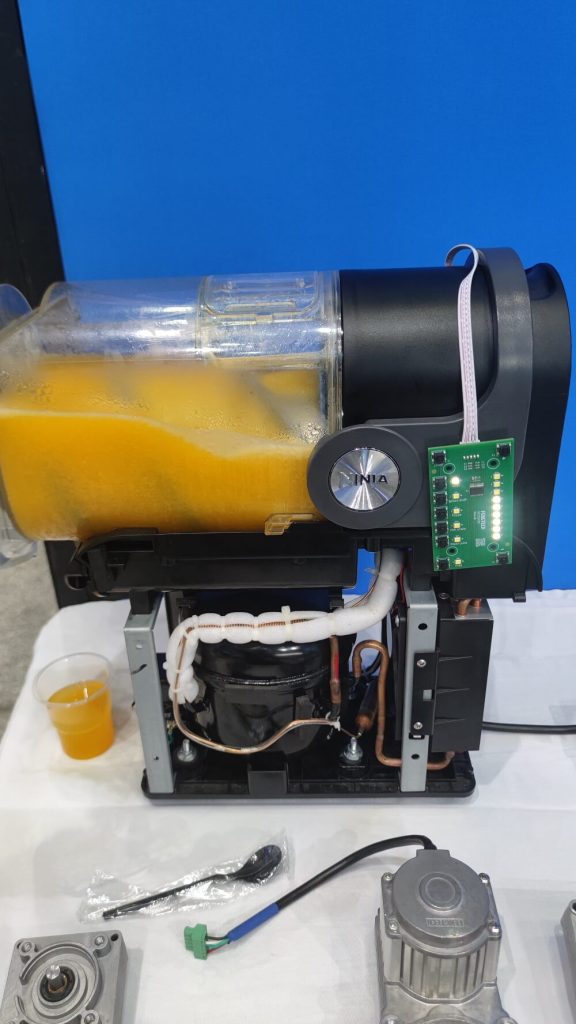

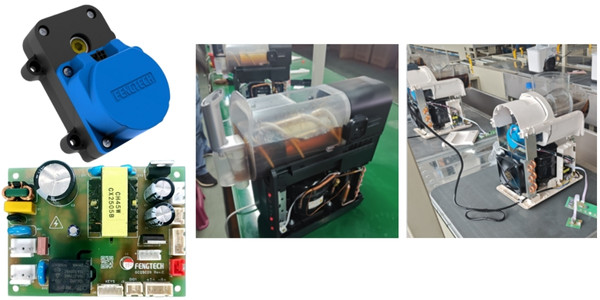

Household Slush Machine Motor

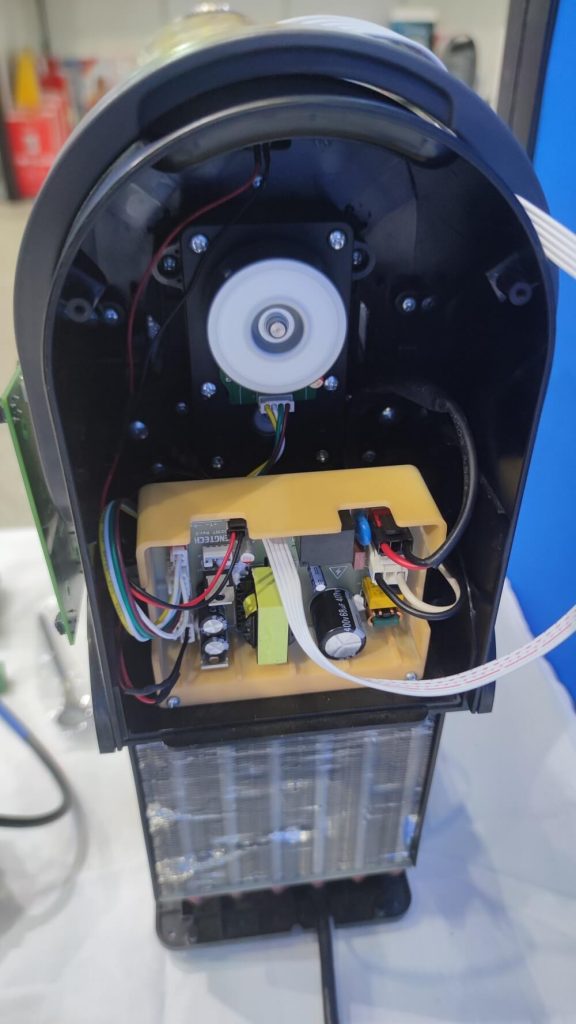

Motor: M1
DC12V 50RPM
* Maximum Torque 2.5N.m
* Suitable for 3L Slush Machine
* RS-485 Interface
* Overvoltage, overcurrent, stall protection
* Customizable shaft

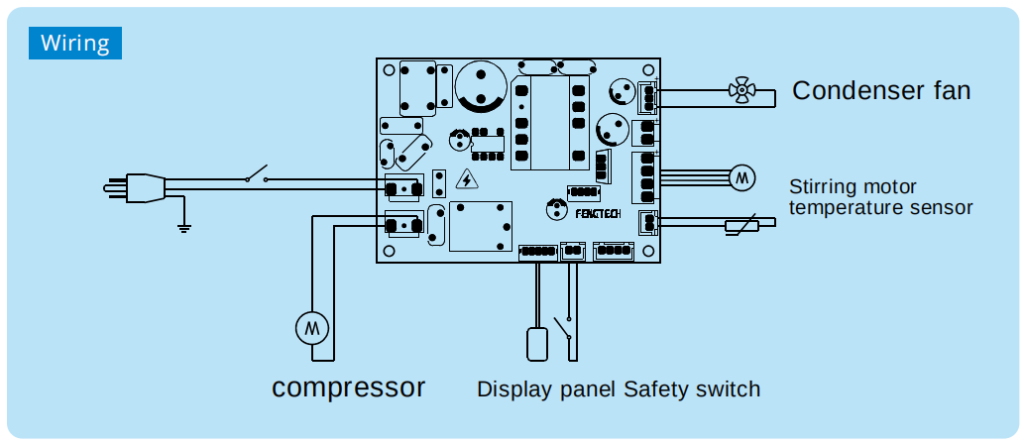

Household ice maker control board
* Full voltage adaptation
* High-power compressor relay
* Temperature and current dual-loop control algorithm
* Freezing cylinder advance perception
* Complete protection algorithm
Temperature sensor and wiring harness
* Premium grade material
* NTC enhanced connection processing
* High temperature measurement accuracy

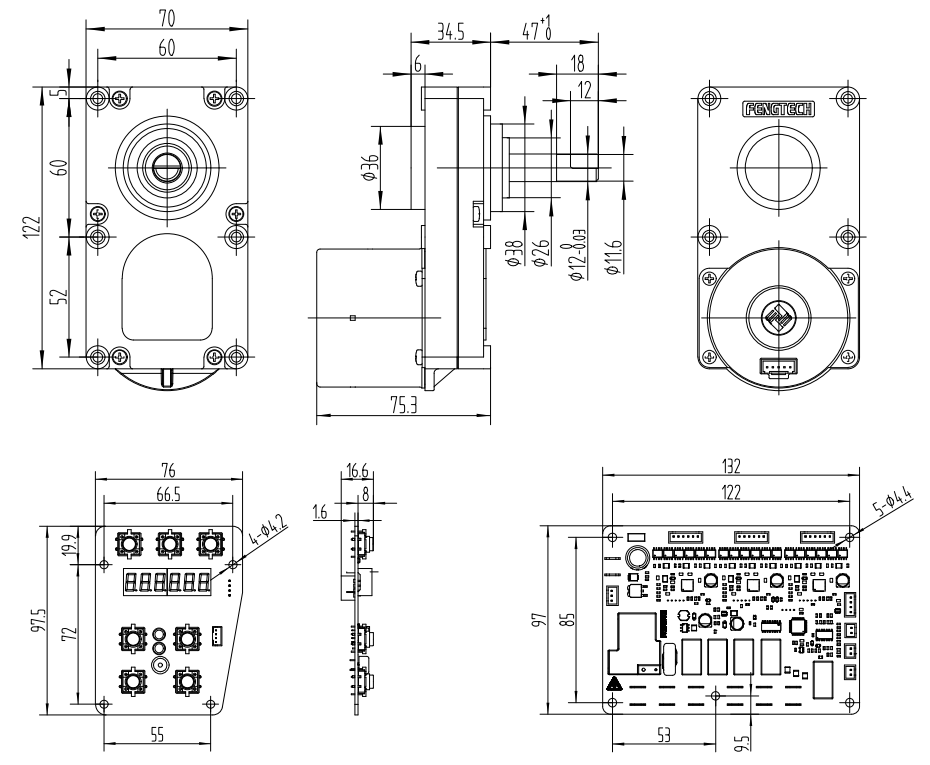

Drawings

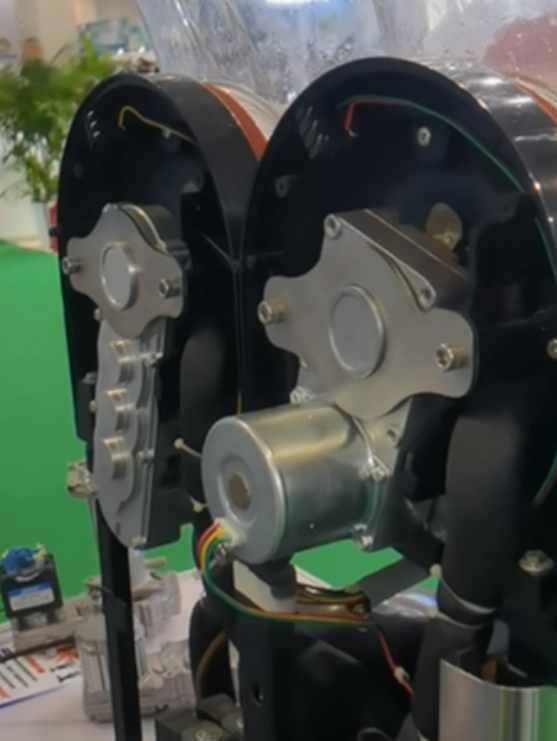

Commercial Slush Machine Motor

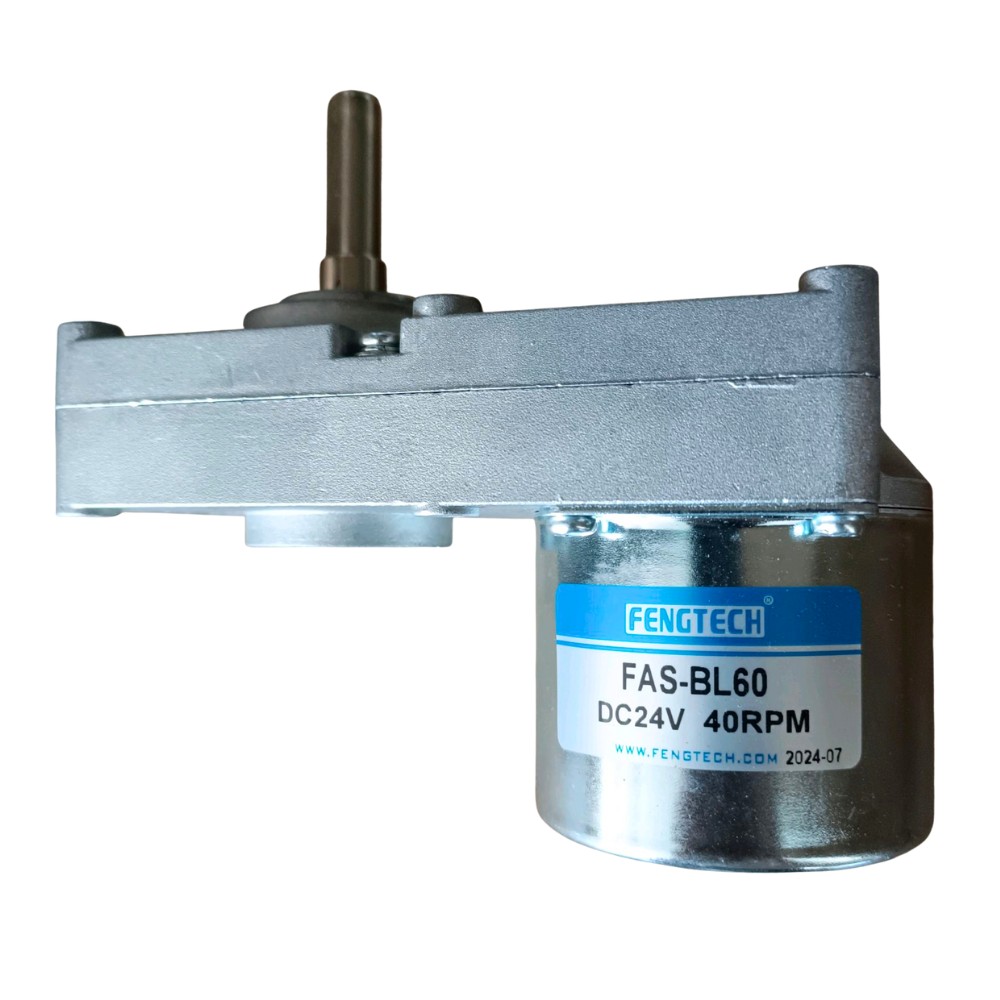

Motor: FAS-BL60
* DC24V 40RPM
* Maximum torque 12N.M
* Suitable for 10L slush machines
* Overvoltage, overcurrent, and stall protection
* Customizable shafts
Motor: YJF6440
* AC230V 50Hz, 34RPM
* Maximum torque 8N.M
* Customizable output shaft
* No-load power 65W

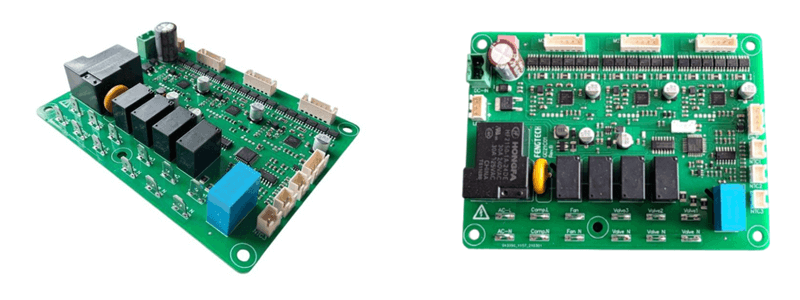

Slush Machine Control Board
* High-Power Compressor Relay
* Temperature and Current Dual-Loop Control Algorithm
* Cylinder Pre-Frost Detection
* Comprehensive Protection Algorithm
Drawings
TALK TO THE EXPERTS!
Contact our team of engineers today to get the right slush machine motor solution for your project.
