Application

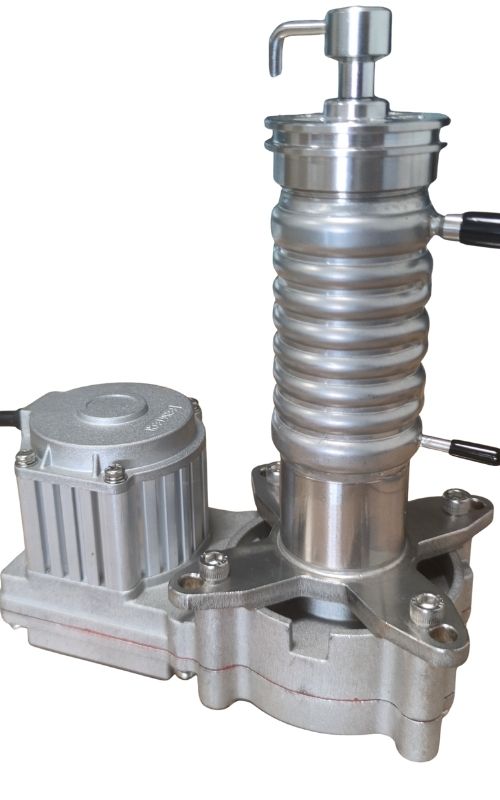

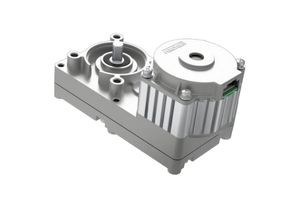

Ice Maker Motor

The auger motor in the ice maker is mainly responsible for driving the screw to rotate, thereby pushing the prepared ice cubes from the evaporator surface or ice tray in the ice making area to the ice storage bin or ice outlet.
In order to cope with small or commercial ice makers, Fengtech custom-designed high-torque, low-noise, and long-life outer rotor motors to ensure that the ice maker can operate stably.

Operation Process

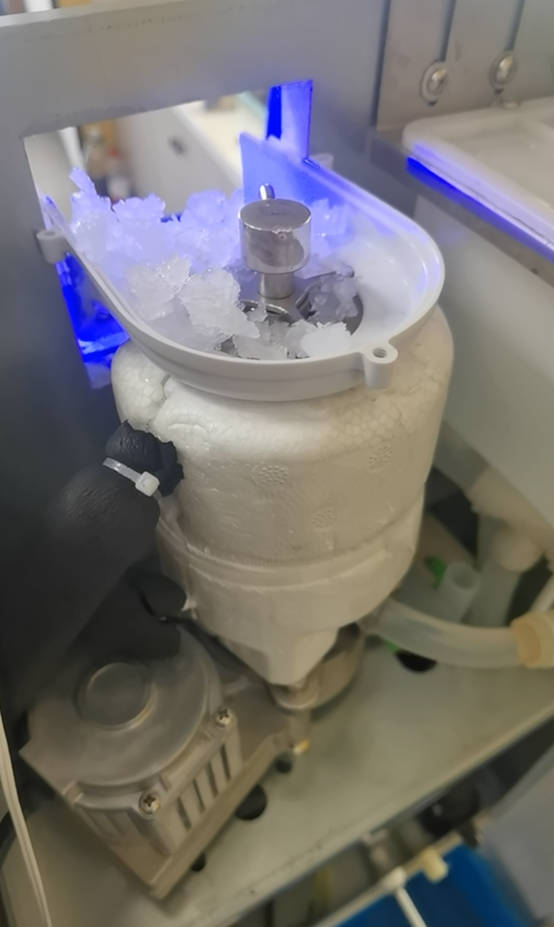

ice_maker_motor_test

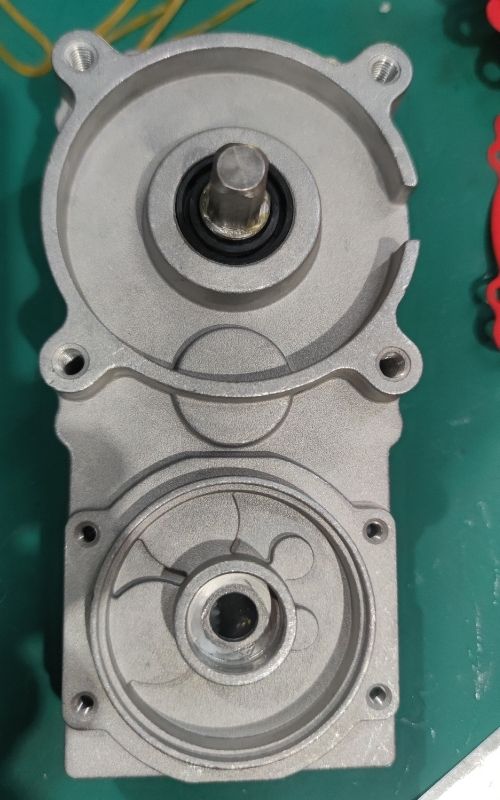

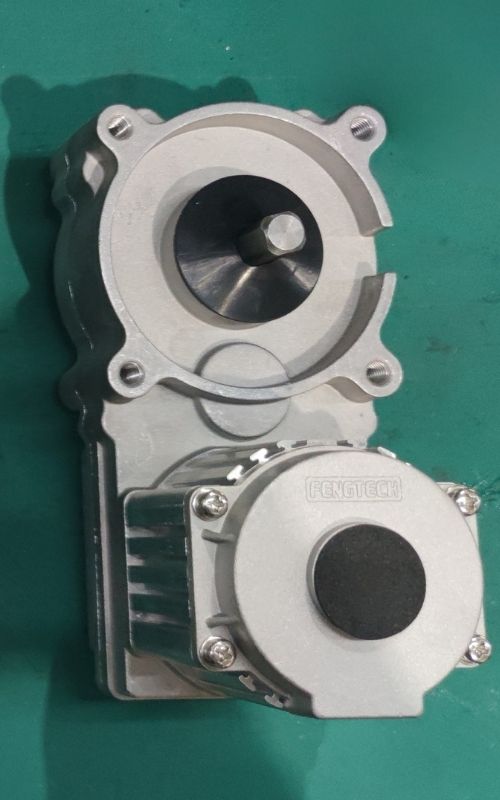

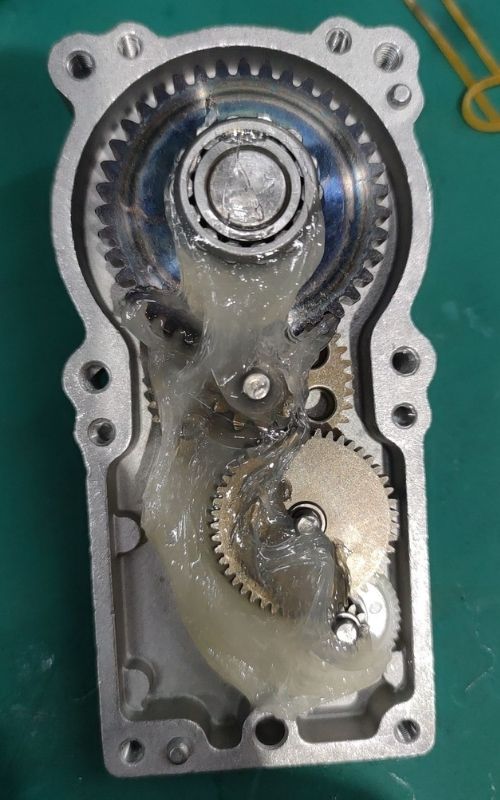

Operation Process

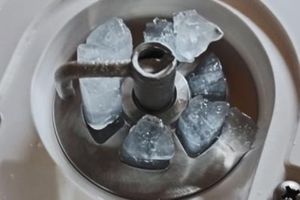

ice maker test2

Related Products

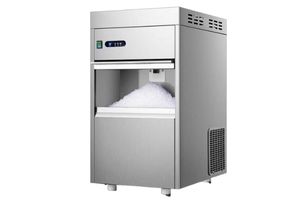

suitable for commercial and household ice makers

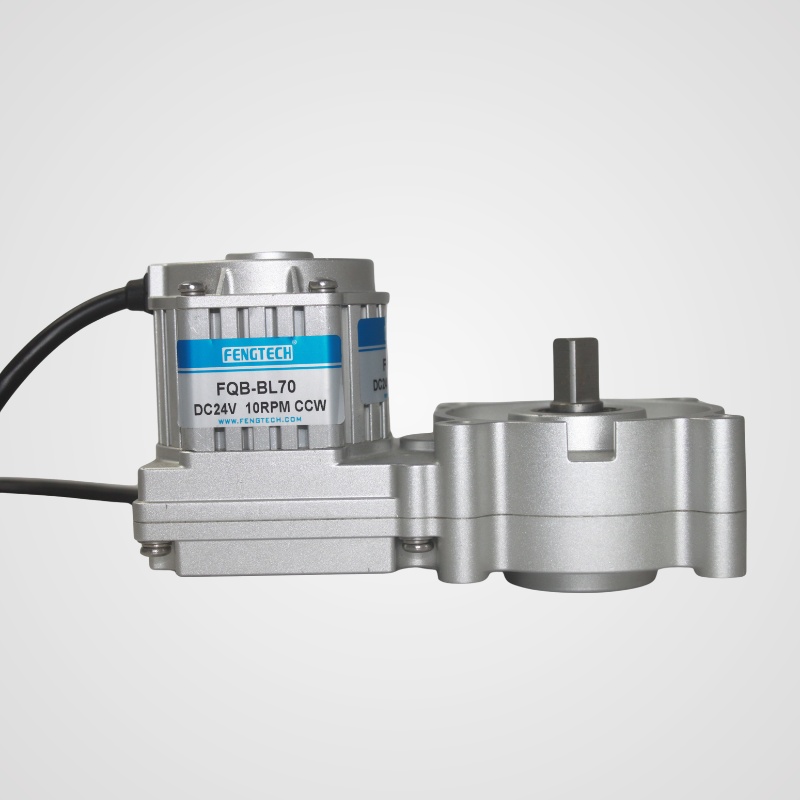

FQB-BL70-1

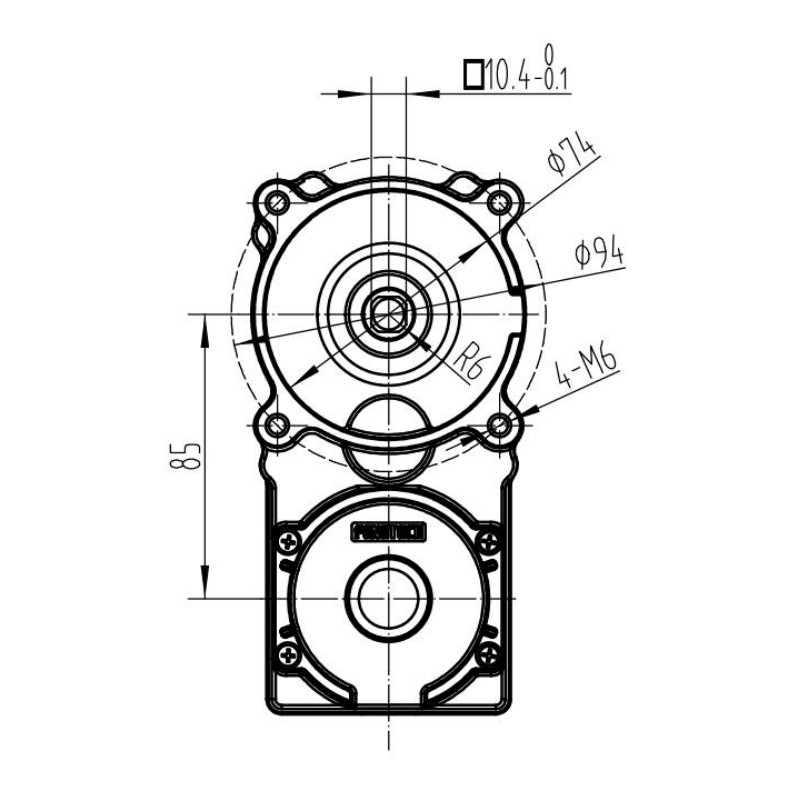

FQB-BL70-Design1

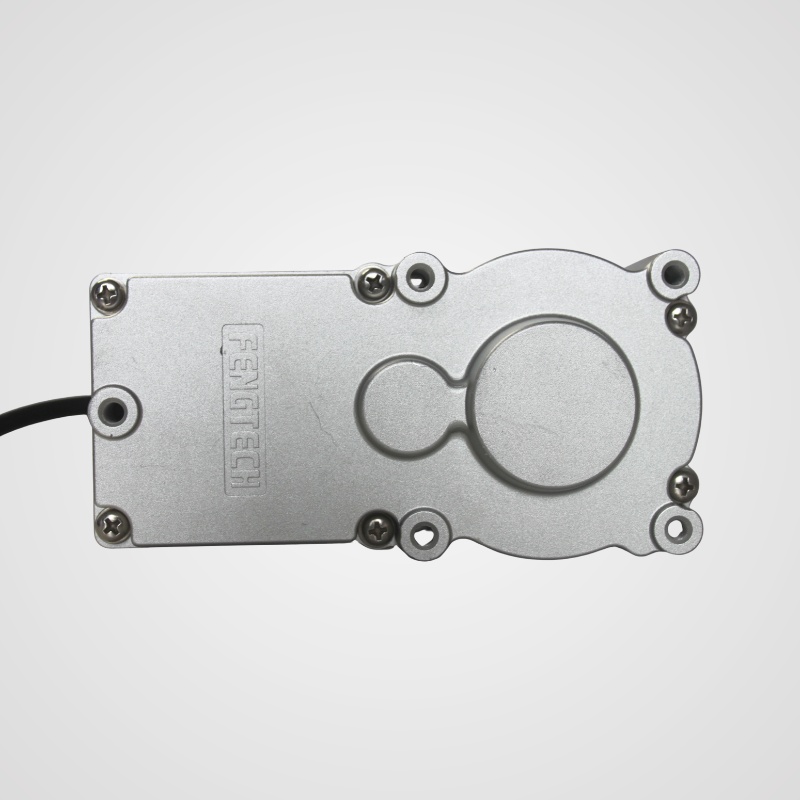

FQB-BL70-2
FQB-BL70-Design2

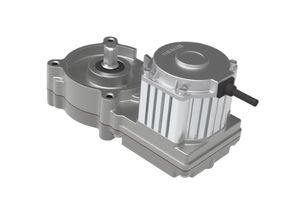

Other Versions:

PDFFQB-BL70 DC24V 5RPM/MAX Torque ≥ 50N.m

FQB-BL70

NO. ITEM SPECIFICATION REMARK
1.1 Operating Voltage 18-26VDC Rated 24V
1.2 Rated Speed 10RPM
1.3 Rated Torque 15 N.m
1.4 Rated Current 1.0A
1.5 Rotation CCW
ELECTRICAL CHARACTERISTICS
2.1 Noload Power ≤9.5W Reated Voltage 25℃
2.2 Noload Current ≤0.4A
2.3 Noload Speed 10RPM±10%
2.4 Max Torque ≥ 30N.m
2.5 Max Current 2.5A
2.6 Insulation Class Class E
2.7 Insulation Res. 100M ohm min
MECHANICAL CHARACTERISTICS

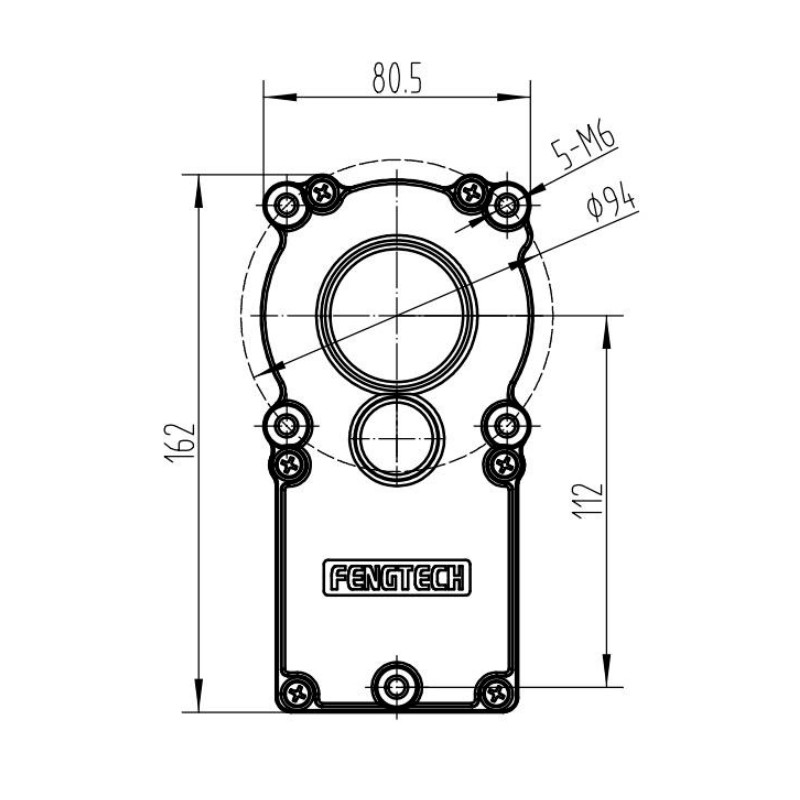

3.1 Outline Dimension As Outline Drawing
3.2 Noise(1m) 50 dB(A)max
3.3 Axial Play 0.5mm max
OPERATING CONDITIONS
4.1 Operational Temp. -20~60℃
4.2 Opeartional Humidity 10~90%RH No Condensation
