Solutions
Slush Machine Motor
The slush machine motor is the core component that drives the core functions of the smoothie machine. It is mainly responsible for:
1. Mixing: The liquid and the smoothie ingredients are continuously mixed by rotating the mixing paddle to prevent freezing and solidification, forming a uniform smoothie texture.
2. Linkage: Works with the compressor to ensure that the evaporator cylinder maintains a low temperature (usually -5°C to -10°C) to quickly freeze the liquid to a semi-solid state.
Jump to the corresponding solution:
Operation Process
Home Slush Machine Solution
Fengtech has designed a drive solution for home slush machines, including motors, drivers, control panels and other supporting equipment. (Usually used for 1-3L slush machines)
Home Slush Machine Motor
Model: M1
* DC12V, 50RPM
* Maximum torque 2.5N.m
* Suitable for 3L slush machine (customizable)
* RS-485 interface
* Overvoltage, overcurrent, stall protection
* Customizable shaft
Control Panel & Temperature Sensor & Wire Harness
Slush Maker Control Panel
* Full voltage adaptation
* High power compressor relay
* Temperature and current dual-loop control algorithm
* Advanced freezing cylinder sensing
* Complete protection algorithm
Temperature sensor and wiring harness
* Premium grade materials
* NTC enhanced connection processing
* High temperature measurement accuracy
Slush Machine Drive Kit
Home Slush Machine Solution Kit
* Motor
* Control Board
* Display Board
* Temperature sensor and wiring harness
Home Slush Maker Related Information
For more solutions about home smoothie machine, including product introduction, wiring diagram, design drawing, etc., please refer to the pdf file.
➤ Home Slush Machine Solution_EN.pdf
Commercial Slush Machine Solution

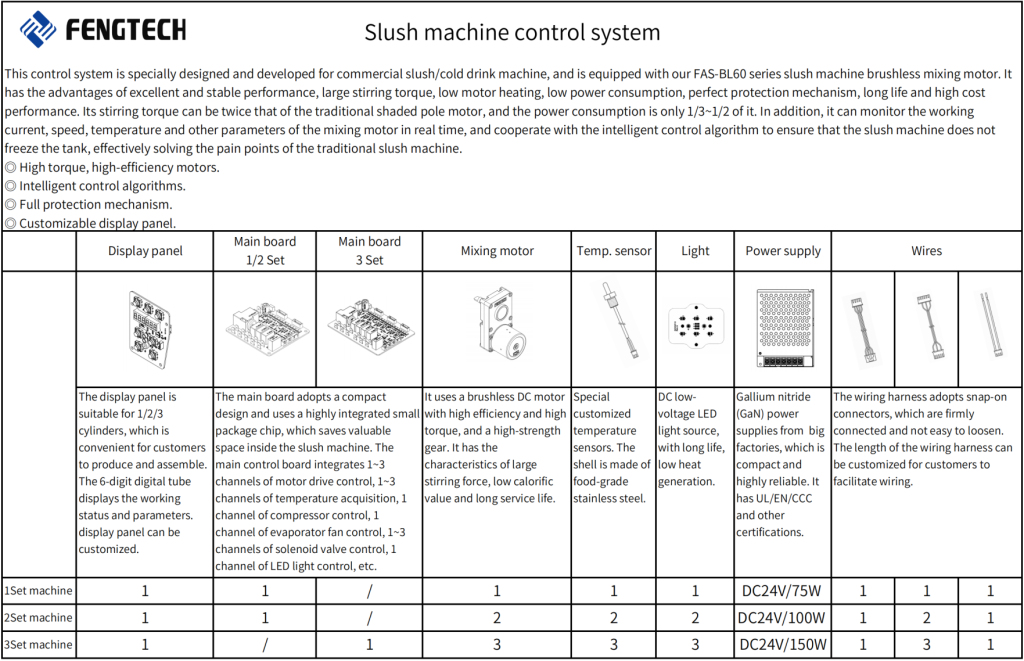

Fengtech’s commercial slush machine drive solution includes motor, control board, switching power supply, sensor and other supporting equipment. (Usually suitable for 5-10L slush machines)
Commercial Slush Machine Solutions
Model: FAS-BL60
* DC24V, 40RPM
* Maximum torque 12N.m
* Suitable for 10L slush machine (customizable)
* RS-485 interface
* Overvoltage, overcurrent, stall protection
* Customizable shaft
Control Panel & Temperature Sensor & Wire Harness
Slush Machine Control Panel 1/2/3Set
* High-power compressor relay
* Temperature and current dual-loop control algorithm
* Freezing cylinder advance sensing
* Complete protection algorithm
Switching Power Supply
* Full voltage adaptation
* Industrial grade, high reliability
* Small size
* UL/EN/CCC certification
Home Slush Maker Related Information
For more commercial slush machine solutions, including product introduction, wiring diagram, design diagram, etc., please refer to the pdf file. For other questions, please contact us.
our Products
Fengtech - Slush Machine Motor Manufacturing Expert
| Common Slush Machine Motor Problems | Problem Solving |
|---|---|
| Motor overheating shutdown: causing ice cream to melt and service interruption | Uses specific bearing and copper wire winding design, and has temperature protection and impedance protection |
| Abnormal noise/vibration: affects customer experience and may cause damage | Precision internal design to reduce noise |
| Complete failure: machine paralyzed | Each motor undergoes rigorous testing to ensure reliability |
| Poor compatibility: only compatible with a small number of slush machines | Suitable for most brands of slush machines, and supports customized designs |
Durable Metal Material
Delicate internal parts
Custom Design
Custom Slush Machine Motor
In addition to our existing motors, Fengtech also supports customized motors, mainly including customized parameters, design, logo, packaging and other aspects.
We have a professional team of motor engineers to provide customized service support.
| Customization Category | Option Description | Application Scenarios |
|---|---|---|
| Voltage & Frequency | 110V/220V/230V, 50Hz/60Hz | Equipment Compatibility |
| Power Range | Customizable | Mini or Commercial Slush Machines |
| Protection Class | Impedance Protection, Low-Temperature Protection | Extended Service Life |
| Temperature Adaptability | Low-Temperature Startup Guarantee from 40°C to 75°C | Cold Storage Supporting Equipment |
| Speed Control Function | Stepless Speed Regulation | Production of Slush with Different Consistencies |
| Noise Control | ≤45dB Low-Noise Design | Applications in Libraries/Cinemas, etc. |
| Special Certification | Explosion-Proof Certification | Alcoholic Beverage Slush Machines |
