Custom Rotating Light Box Motor

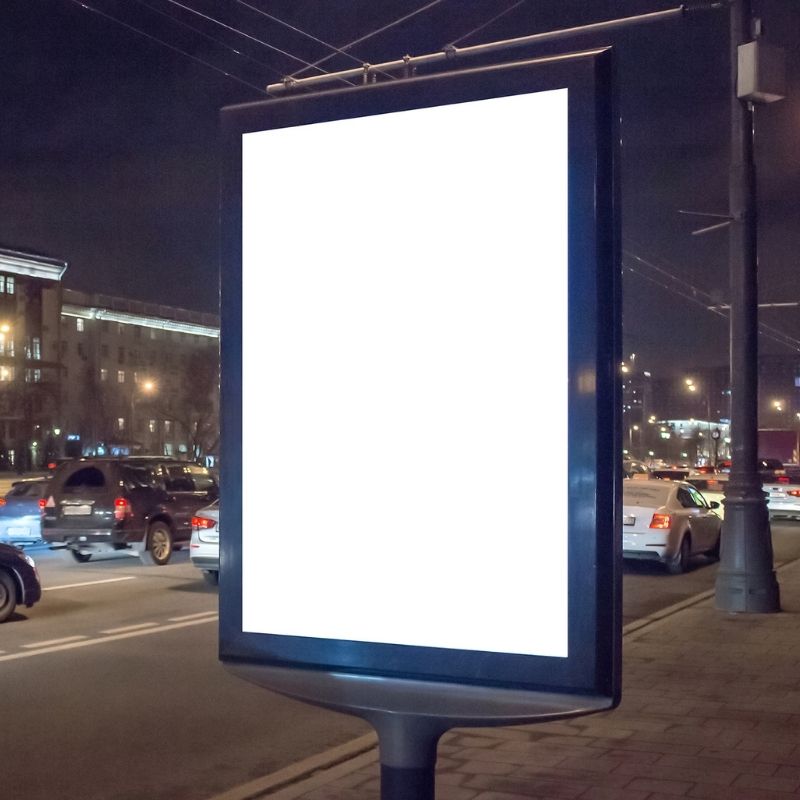

Enhancing Advertising Impact with Rotating Lightboxes

We supply motors for rotating lightboxes to manufacturers of display fixtures, advertising lightboxes, and similar enterprises. We have earned their trust through our motors’ characteristics of low speed, low noise, and long service life. Thanks to the efficiency of our custom-engineered motors, they are capable of smoothly rotating lightboxes weighing up to several tens of kilograms at a constant speed.

Recommended Core Parameters for Rotating Lightbox Motors

1. Voltage
AC 110V / 220V — Commercial Lightboxes
DC 12V / 24V — Small / Desktop Lightboxes

2. Rotational Speed Recommended Range:
1–6 RPM (Slow rotation to enhance visual impact)

3. Power Common Range:

4W – 20W

4. Load Capacity
Max Load: 5–50 kg

5. Noise Level
≤ 45 dB

6. Rotation Direction
CW / CCW (Selectable: Clockwise / Counter-clockwise)

Recommended Torque by Light Box Size

Light Box Category	Weight Range	Recommended Torque	Typical Application
Small	≤ 5 kg	3 – 6 kg·cm	Desktop displays, mini advertising signs
Medium	5 – 15 kg	10 – 20 kg·cm	Retail light boxes, indoor signage
Large	15 – 30 kg	30 – 60 kg·cm	Shopping mall displays, commercial signage
Extra Large (Outdoor)	≥ 30 kg	60+ kg·cm	Outdoor billboards, gas station signage

💡 Note: Torque requirements may vary depending on light box structure, rotation diameter, and installation method. We support custom motor solutions based on your exact specifications.

Rotating Light Box Motor Manufacturing Cases

12V AC Synchronous Motor

1. Rated Characteristics
No.	Item	Specification	Remark
1.1	Operating Voltage	AC12V±10% 50Hz
1.2	Noload Current	0.6A
1.3	Output Shaft Speed	1.0 RPM
1.4	Rotation	CW/CCW
1.5	Rated Capacitor	120μF
2. Electrical Characteristics
2.1	Noload Power	6.0 W
2.2	Stall Torque	70 kfg.cm max
2.3	Running Torque	65 kfg.cm min
2.4	Start Torque	60 kgf.cm min
2.5	Insulation Resistance	100M Ohm min
2.6	Insulation Class	Class E
2.7	Dielectric Strength	AC500V/50Hz
3. Mechanical Characteristics
3.1	Outline Dimension	As Outline Drawing
3.2	Noise(1m)	45 Db(A) Max
3.3	Axial Play	0.5Mm Max
