Custom Pizza Warmer Motor

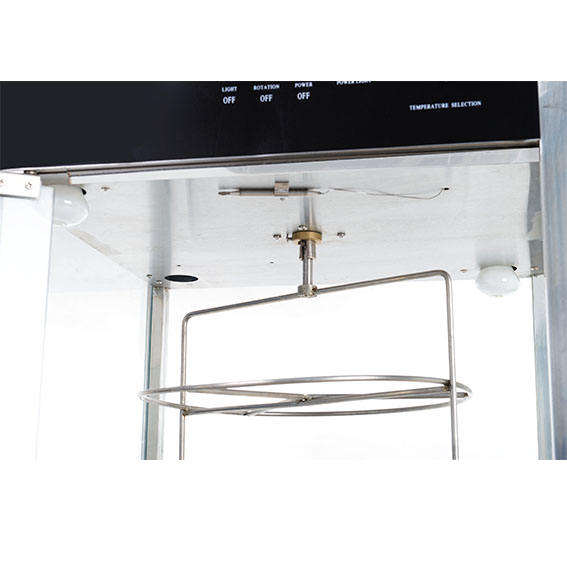

A pizza warmer is a display cabinet with a heating function—a type of hot food display cabinet—that typically features transparent glass to showcase and keep pizzas warm without compromising their quality.
Fengtech supplies the rotating motors for this equipment, which primarily serve to rotate the pizzas for display and ensure even heating. These units are used in convenience stores, pizza shops, and similar establishments.
Household Ice Maker
Our Rotary Motor Applications:
• Pizza Warmer Rotating Display Trays
• Hot Food Display Cabinets
• Commercial Display Case Rotating Shelves
Key Design Features of Our Pizza Warmer Motors:
Ultra-quiet operation: Noise level ≤ 45dB, rendering it virtually imperceptible in commercial environments.
Stable, low-speed rotation: Adjustable speed range of 1–20 RPM; operates smoothly without wobbling, stuttering, or stalling.
High-temperature resistant design: Operating environment range of 0–70°C.
Extended continuous operation: Rated for ≥ 10,000–20,000 hours; ideal for 24/7 commercial equipment, helping to reduce after-sales service and replacement costs.
Flexible, customizable mounting structure: Adaptable to the structural designs of various equipment brands.
Multi-voltage support: Compatible with AC 110V / 220V / 240V and 50Hz / 60Hz power supplies.
Recommendations for Hot Food Display
| Zastosowanie | Diameter | Load Capacity | Recommended Torque |
|---|---|---|---|
| Small Single Layer | 300 mm | 2–5 kg | 4–6 kg·cm |
| Medium Double Layer | 400 mm | 5–10 kg | 6–12 kg·cm |
| Large Multi-layer | 500 mm+ | 10–20 kg | 12–25 kg·cm |
*Our engineers provide torque calculation support based on your pallet dimensions and load conditions.
Motor Selection Guide
The calculation results are for reference only. If you have any other requirements, please contact us.
Pizza Warmer Motor Manufacturing Cases
| 1. Rated Characteristics | |||
|---|---|---|---|
| No. | Item | Specification | Remark |

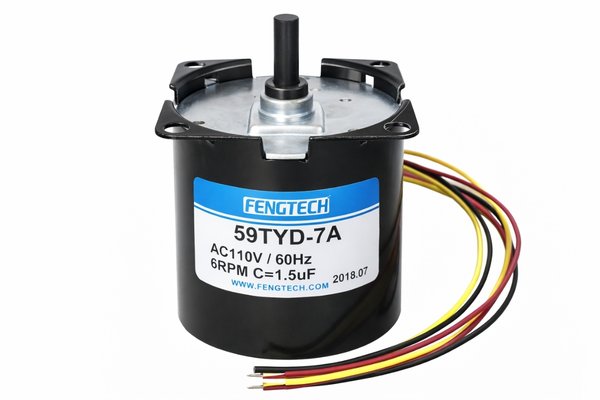

| 1.1 | Operating Voltage | AC110V | |
| 1.2 | Rated Speed | 5.0 RPM | |
| 1.3 | Rated Capacitor | 1.5μF | @ Rated Voltage 25℃ Ambient |
| 1.4 | Rotation | CW/CCW | |
| 2. Electrical Characteristics | |||
| 2.1 | Noload Power | ≤ 13.7 W | |
| 2.2 | Noload Current | ≤ 0.13 A | |
| 2.3 | Noload Speed | 5 RPM | @ Rated Voltage 25℃ Ambient |
| 2.4 | Stall Torque | 80 kfg.cm max | |
| 2.5 | Running Torque | 70 kfg.cm min | |
| 2.6 | Insulation Class | Class E | |
| 3. Mechanical Characteristics | |||

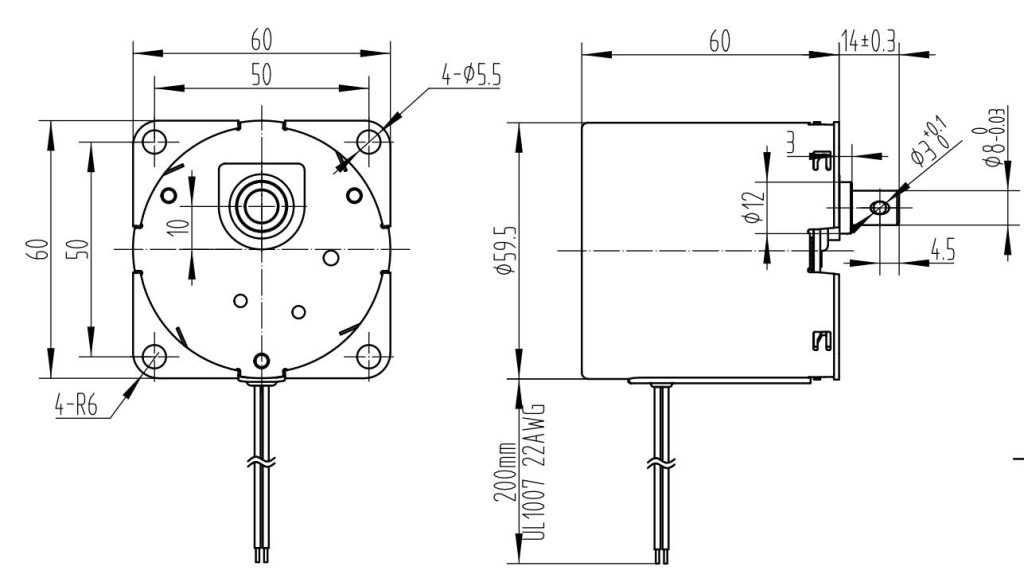

| 3.1 | Outline Dimension | As Outline Drawing | |
| 3.2 | Noise(1m) | 45 Db(A) Max | |
| 1. Rated Characteristics | |||
|---|---|---|---|
| No. | Item | Specification | Remark |

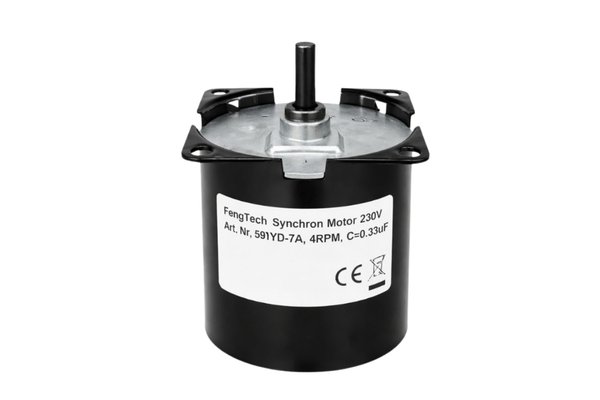

| 1.1 | Operating Voltage | AC230 ±10% | |
| 1.2 | Rated Speed | 4.2 RPM | |
| 1.3 | Rated Capacitor | 0.33μF | @ Rated Voltage 25℃ Ambient |
| 1.4 | Rotation | CW/CCW | |
| 2. Electrical Characteristics | |||
| 2.1 | Noload Power | ≤ 10 W | |
| 2.2 | Noload Current | ≤ 0.1 A | |
| 2.3 | Stall Torque | 50 kfg.cm max | |
| 2.5 | Running Torque | 35 kfg.cm min | |
| 2.6 | Insulation Class | Class E | |
| 3. Mechanical Characteristics | |||

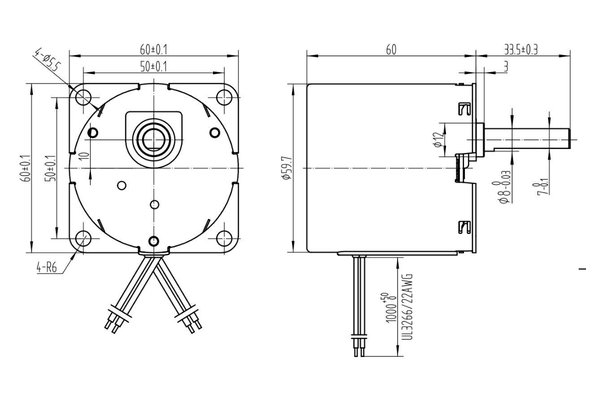

| 3.1 | Outline Dimension | As Outline Drawing | |
| 3.2 | Noise(1m) | 45 Db(A) Max | |
