Pellet Stove Feeding –
2.4RPM Pellet Auger Motor
Case Information
Customer: Pellet and Coal-Fired Equipment Manufacturers Motor: GF-64TYD 230V/50Hz/2.4RPM Application: Pellet Stove Industry: Heating Equipment
Case Source: Türkiye
Inquiry:
This client, a Turkish manufacturer of pellet stoves and coal-fired equipment, primarily exports to Europe, the United States, and other countries. They have high product quality requirements and are looking for a motor for the pellet stove’s fuel transport mechanism to ensure stable biomass pellet transportation and efficient operation.
The motor speed in a pellet stove is typically relatively low, typically 2-10 RPM, so confirming the speed and ensuring that our product is well-suited to the pellet stove’s design is crucial.
Key Challenges:
• Motor design compatible with pellet stoves
• Suitable parameters
• Durability

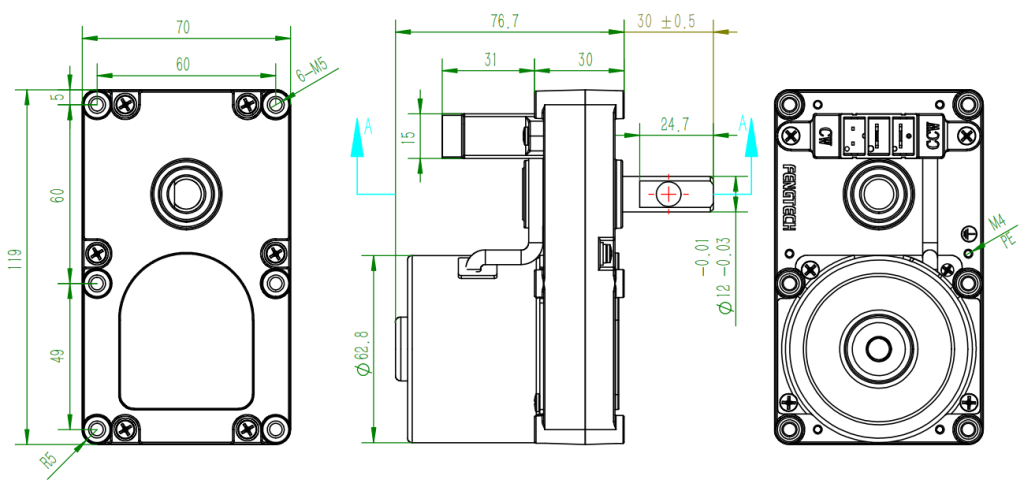

Design:

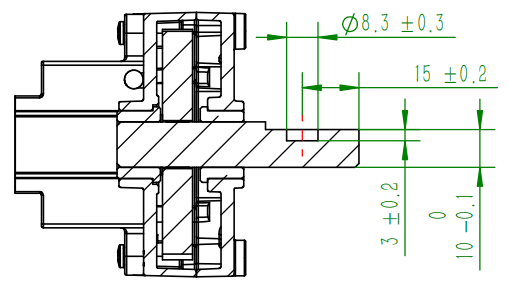

Output Shaft:
Solution:

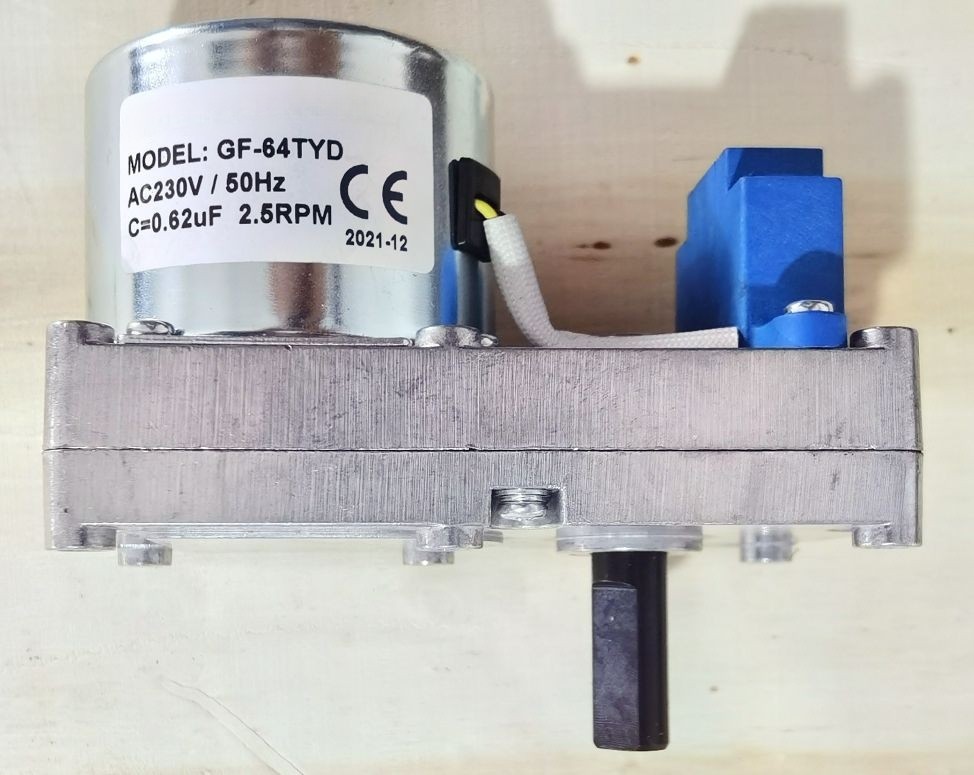

Motor Model: GF-64TYD
• Voltage: AC230V
• Frequency: 50Hz
• Speed: 2.4RPM
• Direction: CW/CCW
• Certification: CE

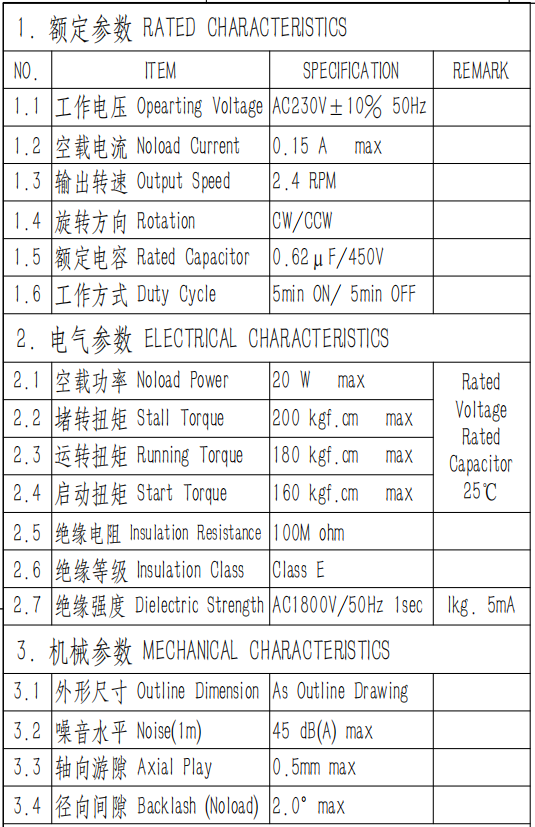

Parameters:
To accommodate most electricity needs in Europe, we chose a 230V 50Hz voltage and control the motor’s rotation direction. More importantly, since this pellet stove is designed for indoor use, we kept the maximum motor noise level below 45dB, making it virtually inaudible during operation.
In terms of performance, the operating torque reaches 180kg.cm, ensuring stable operation of the fuel delivery mechanism without pellet clogging and motor malfunction.
This customer has been working with us for nearly 10 years and has maintained close contact, gradually becoming a key player in their heating system.
