▍ODM/OEM
DC 기어 모터 제조업체 및 공급업체
▍높은 효율성, 긴 수명
▍RS-485 제어 방식
▍다양한 보호 모드
▍고객 맞춤 설정 지원
▍가정용 및 상업용 식품 기계
▍바이오매스 벽난로, 오븐
▍기타 자동화 장비
Design & Applications of DC Geard Motors
Fengtech’s designed and manufactured brushless DC motors have been applied in various fields, including cross-flow fans and ice maker water pumps. Their long lifespan, low noise, and strong stability make them the preferred motor for many manufacturing plants. We also provide fully customized production and services to meet diverse application scenarios and requirements. If your project requires brushless DC motors and you are unsure about the design and debugging process, please contact our engineering team. Below are some examples of brushless DC motor design and production cases in various industries:

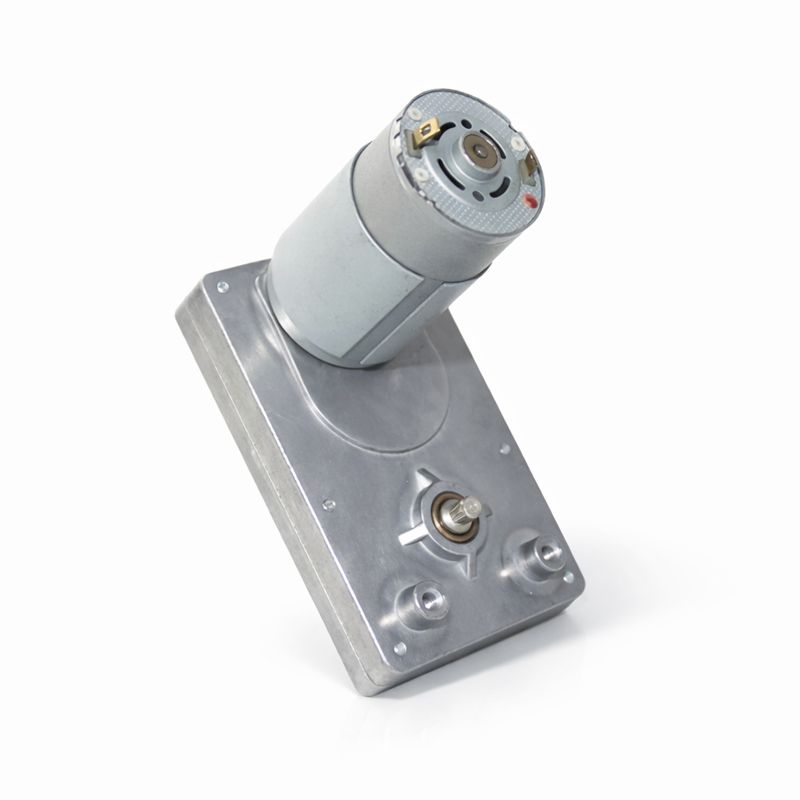

Coin-Operated Machine Motor

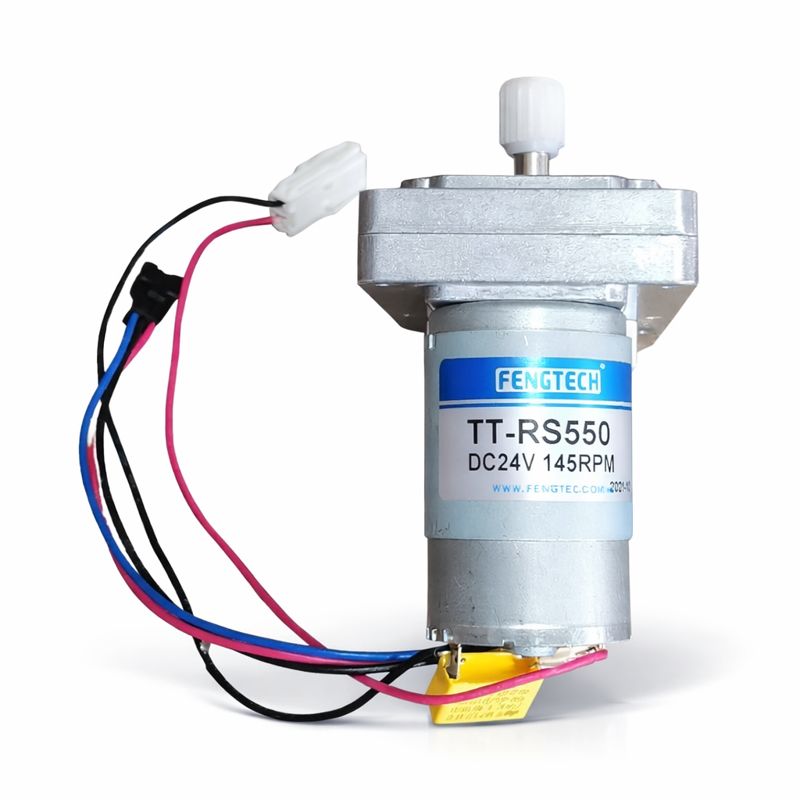

Soy Milk Maker Motor
Damper Actuator Motor
연동 펌프 모터
제품 카테고리
문의하기
닝보 펑테크 모터 주식회사
Address: ShangshuiQi, Dongqiao, Haishu, Ningbo, China
TEL：0086-574 8826 9878
Moblie：86-15314581799
E-mail: export@fengtech.com
Related Articles
Custom Ice Maker Water Pump Motor
25/12/2025
-
-
DC 기어드 모터
GY37
124000-30K: 12V-110RPM-0.14A-0.06N.m-0.7W
124000-90K: 12V-36RPM-0.14A-0.17N.m-0.64W
124000-270K: 12V-12RPM-0.14A-0.42N.m-0.53W
124000-810K: 12V-4RPM-0.14A-1.2N.m-0.5W
122800-30K: 12V-73RPM-0.14A-0.045N.m-0.34W
122800-90K: 12V-24RPM-0.14A-0.13N.m-0.33W
122800-270K: 12V-8RPM-0.14A-0.35N.m-0.29W
Downloads
Download detailed technical documents for our custom DC Geard motors. All files are provided by our in-house engineering team.
Automated Production and Quality Control
Automatic Motor Bracket Installation
Automatic Circuit Welding
Motor Testing System
Automatic Motor Bracket Installation
Motor Mounting Equipment
Motor Housing Die Casting
DC Geard Motor - Customization Range
| Customization Item | Available Options |
|---|---|
| Rated Voltage | 12V / 24V / 36V / 48V / Customized |
| Speed (RPM) | 0 – 10,000 RPM (customized) |
| 토크 | Customized according to load requirement |
| Output Power | 0W – 50W (optional) |
| Shaft Type | Round shaft / D-shaft / Keyed shaft / Customized |
| Mounting Type | Flange mount / Foot mount / Customized |
| Control Type | Sensor / Sensorless |
| Protection Level | IP20 / IP44 / IP54 / IP65 (on request) |
| 소음 수준 | Low noise design available (≤50 dB) |
| Connector & Wiring | Lead wire length / Terminal / Connector (customized) |
| Certification | CCC / CE / RoHS /UL(available upon request) |
Learn more about dc geard motor production cases:
|
이미지
|
모델
|
그리기
|
전압
|
출력 속도
|
회전
|
설치
|
|

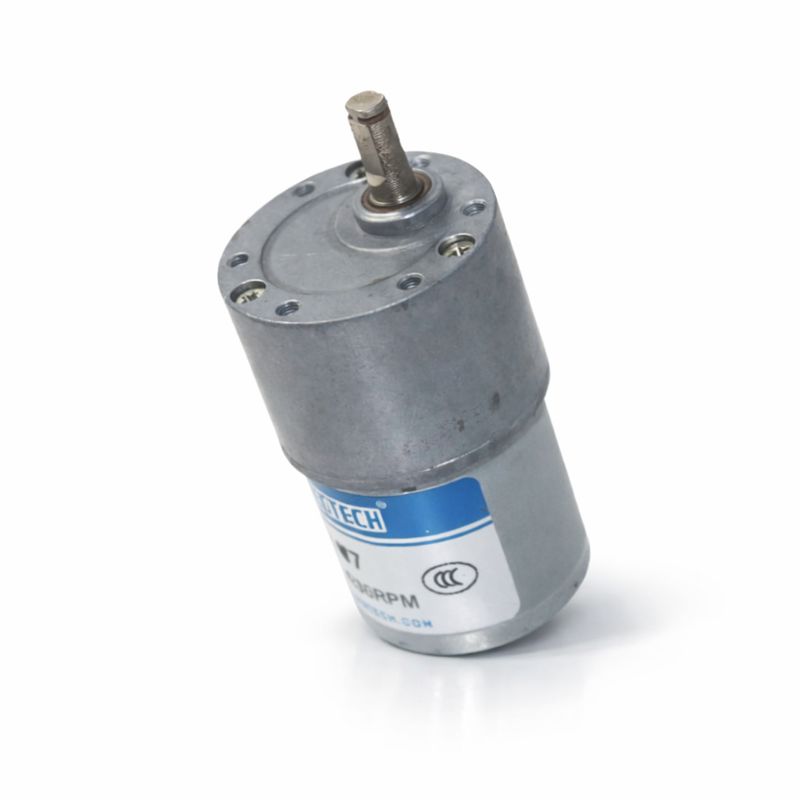

GY37 |
DC6V, 50Hz |
180RPM |
CW/CCW |
|
|---|---|---|---|---|---|---|
|
|
GY37A |
DC6V |
176RPM |
CCW |
|
|
|
|
GY49 |
DC12V |
2.5RPM |
CW/CCW |
Damper Actuator |
자주 묻는 질문
What is your MOQ and lead time for dc geard motors?
The moq is 1000 units, and the delivery time is 30-45 days.
Can you provide customized dc geard motors?
Absolutely, we can provide full customization from design, production, to packaging.
What certifications do your dc geard motors comply with?
We have CCC, CE, UL, ROHS, and other certifications. Please contact us to obtain the certification certificates.
What voltage ranges are available for your dc geard motors?
Typically 12V or 24V, but other parameters can also be customized.
What shaft types and mounting options are available?
Any shaft and mounting method is possible. You can provide relevant design drawings, and we will offer some suggestions.
How do you handle thermal protection?
The motor has a built-in temperature protection device. It will stop running when overheated to protect the motor.
How do I select the right dc geard motor for my application?
We have over 20 years of experience in custom design. You can provide your requirements to our engineers, and they will provide reasonable suggestions.
Can we visit the factory for an on-site inspection?
We are located in Ningbo, Zhejiang, China. If you would like to visit, please contact us in advance to schedule an appointment. We look forward to welcoming you.
