Custom Coin Pusher Motor

24-hour continuous operation, low-noise design, and high torque for driving coins.

To ensure that coin pushers operate with continuous and stable coin propulsion, Fengtech has designed a specialized motor engineered to drive the pushing mechanism at a consistent, low speed. Featuring high torque and high power specifications, this motor is capable of handling medium-to-large-scale equipment while ensuring the long-term durability of both the motor and the coin pusher itself.

What is a Coin Pusher Motor?

The motor in a coin-operated coin pusher serves as the core component driving the movement of the pusher plate. It converts electrical energy into low-speed, high-torque mechanical motion, thereby enabling the pusher plate to propel coins or tokens forward in a stable and controlled manner.

The Motor’s Primary Functions in a Coin Pusher:
• Controlling pushing force
• Stabilizing the pushing rhythm
• Enhancing the user experience

Application Areas

• Coin Pusher Machines
• Arcade Redemption Machines
• Token Dispensers
• Other Amusement Equipment

Customization Options:
Voltage (12V / 24V / AC)
Torque & Speed
Shaft Type (D-shaft / round / custom)
Mounting Size
Gear Ratio
Noise Optimization

Coin Pusher Motor Selection Reference

Machine Size	Load (Coins/Tokens)	Recommended Torque	Speed (RPM)	Motor Type	Application Notes
Small	Light load (≤3 kg)	5 – 10 kg·cm	10 – 30 RPM	DC Gear Motor	Compact machines, smooth and quiet operation
Medium	Moderate load (3–10 kg)	10 – 30 kg·cm	5 – 15 RPM	DC / AC Gear Motor	Most common choice for standard arcade machines
Large	Heavy load (10–25 kg)	30 – 60 kg·cm	3 – 10 RPM	AC Gear Motor	High torque required for stable pushing performance
Extra Large	Very heavy load (25+ kg)	60+ kg·cm	1 – 5 RPM	AC / Brushless Motor	Continuous operation, industrial-grade durability

Coin Pusher Motor Manufacturing Cases

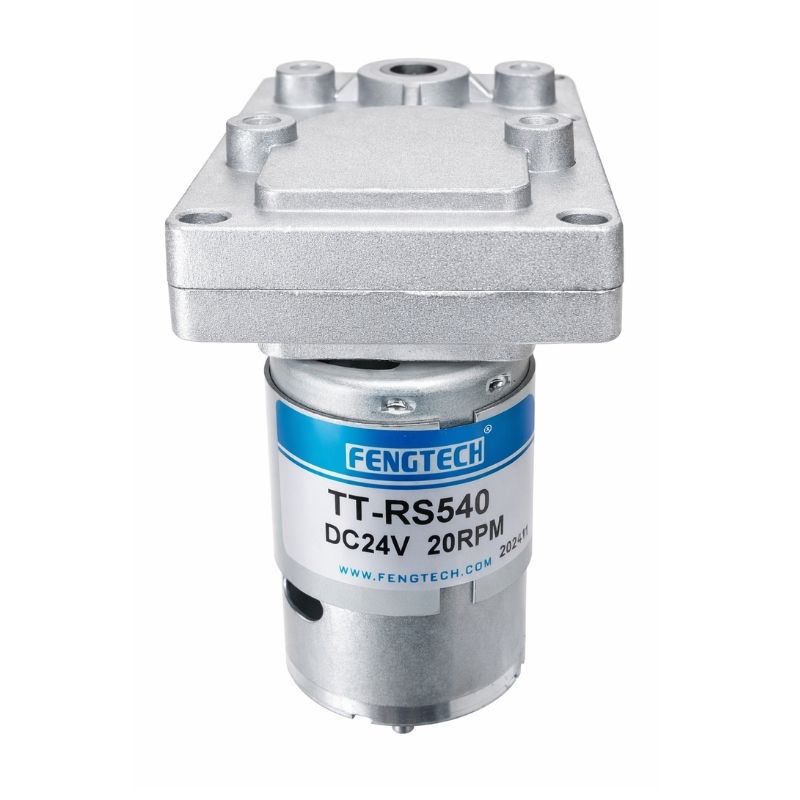

DC 기어드 모터

TT-RS540 (DC24V 20RPM)

1. 정격 특성
아니요.	항목	사양	발언
1.1	Rated Voltage	DC24V
1.2	정격 속도	16 RPM±10%
1.3	정격 토크	100 kfg.cm
1.4	정격 전류	1.5 A
1.5	회전	CW/CCW
2. 전기적 특성
2.1	노로드 전력	6.0 W
2.2	무부하 전류	0.3 A
2.3	노로드 속도	20 RPM
2.4	Stall Torque	230 kfg.cm
2.5	Stall Current	3.2 A
2.6	절연 등급	Class B
2.7	절연 저항.	100M 옴 민
3. 기계적 특성
3.1	개요 차원	윤곽선 그리기로
3.2	소음(1m)	45 Db(A) 최대
3.3	축 재생	최대 0.5mm

자세히 알아보기

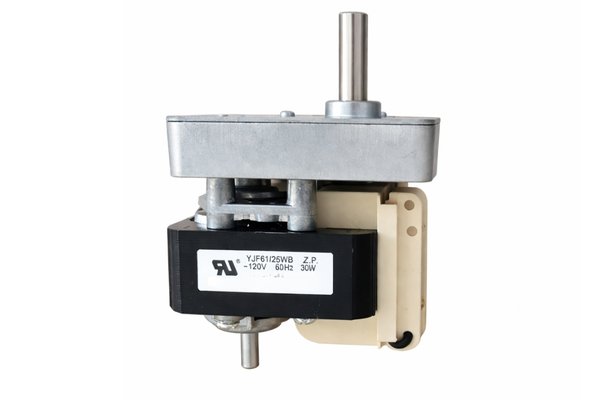

Shade Pole Geard Motor

YJF-6126-FF (AC120V 25RPM)

1. 정격 특성
아니요.	항목	사양	발언
1.1	작동 전압	AC120V±10% 60Hz
1.2	무부하 전류	0.7A max
1.3	출력 속도	25RPM ± 10%
1.4	회전	CW
2. 전기적 특성
2.1	노로드 전력	≤ 36 W
2.2	Stall Torque	26 kgf.cm max
2.3	Running Torque	20 kgf.cm max
2.4	Start Torque	20 kgf.cm max
2.5	절연 등급	클래스 E
2.6	절연 저항.	100M 옴 민
3. 기계적 특성
3.1	개요 차원	윤곽선 그리기로
3.2	소음(1m)	45 Db(A) 최대
