Custom Incubator Motor
A Stable, Low-Noise, and Long-Life Motor for Egg Incubators
Fengtech provides custom-designed egg-turning motors for poultry farms and home appliances. Utilizing a specialized output shaft to drive the rotation of the egg turner, these motors simulate the natural incubation process, effectively preventing internal egg adhesion and significantly boosting hatching success rates.
Applications of Incubator Motors
• Medical Incubators
• Laboratory Incubators
• CO2 Incubators
• Poultry Incubators
• Constant-Temperature Chambers
The Primary Function of the Motor in an Automatic Egg Turner
Automatic Turning: Turns the eggs once every 1–2 hours to prevent the embryo from adhering to the shell and to ensure uniform heat distribution.
Increased Hatching Success Rate: The hatching rate can be improved by 10%–30%.
Improved Temperature and Ventilation: Shifts the surface area of the egg exposed to heat and enhances oxygen exchange.
Reduced Manual Labor: Operates automatically, thereby lowering labor costs.
Incubator Motor Manufacturing Cases

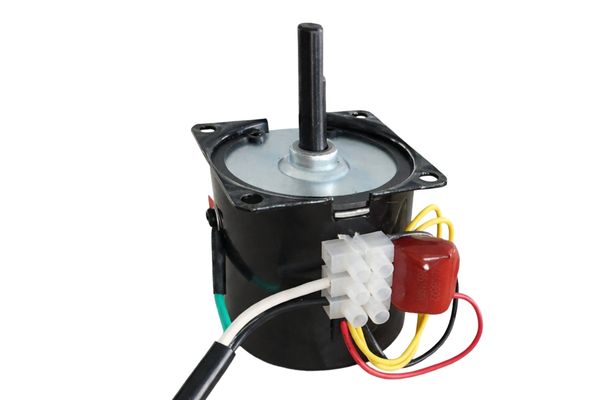

59TYD-6B (AC220V 2.5RPM)
| 1. Rated Characteristics | |||
|---|---|---|---|
| No. | Item | Specification | |
| 1.1 | Voltage/Frequency | AC220V/50Hz | |
| 1.2 | No-load Power | ≤14W | |
| 1.3 | No-load Current | ≤0.1A | |
| 1.4 | Rated Speed | 2.5RPM | |
| 1.5 | Rated Torque | ≥60kgf.cm | |
| 1.6 | Dielectric Strength | AC1500V 50Hz/min | |
| 1.7 | Insulation Class | Class F | |
| 1.8 | Insulation Resistance | Normal state: ≥100 MΩ; Hot state: ≥5 MΩ | |
| 1.9 | Ambient Temperature | -10℃-40℃ | |
| 2.1 | Noise Level | ≤45db | |
