Currency Change Machines
Coin Pusher Motor - 22v 63RPM
Case Information
Customer: Currency Change Machine Manufacturer Motor: FF-RS550 22V 63RPM Application: Coin Pusher Industry: Automation equipment
Case Source: USA
Inquiry:
A motor with dual-threaded operation is required.
1. Connecting to the output system: ensuring accurate currency delivery.
2. Driving the counting system: stopping the motor when a specified number of coins is reached.
For example: If the user confirms the withdrawal amount is 10, the motor will rotate once, dispensing two coins. The motor will rotate five times and immediately stop when the counter returns the result.
Key Challenges:
• Dual-axis motor
• Customizable speed
• Miniaturization
Solution:

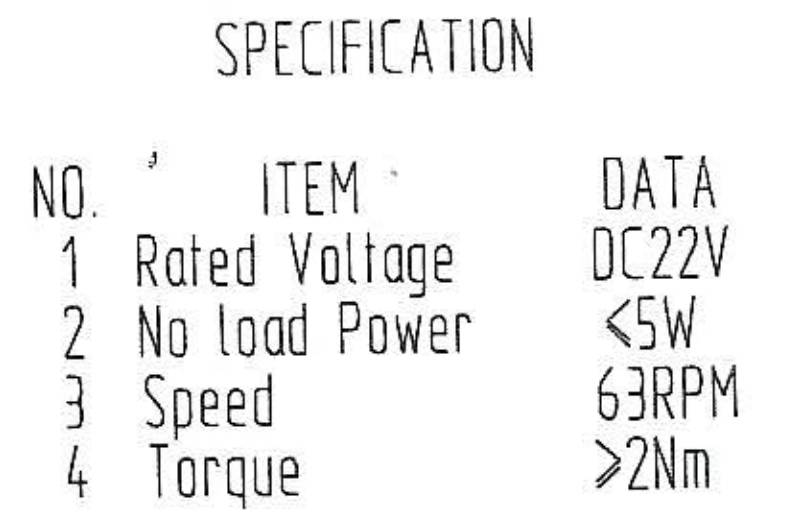

According to the design requirements, the customized 63RPM motor is adapted to the change machine to meet the high torque to push the coins and banknotes and the accurate start-stop control, using DC22V voltage to achieve the optimal performance and accuracy of the processing.

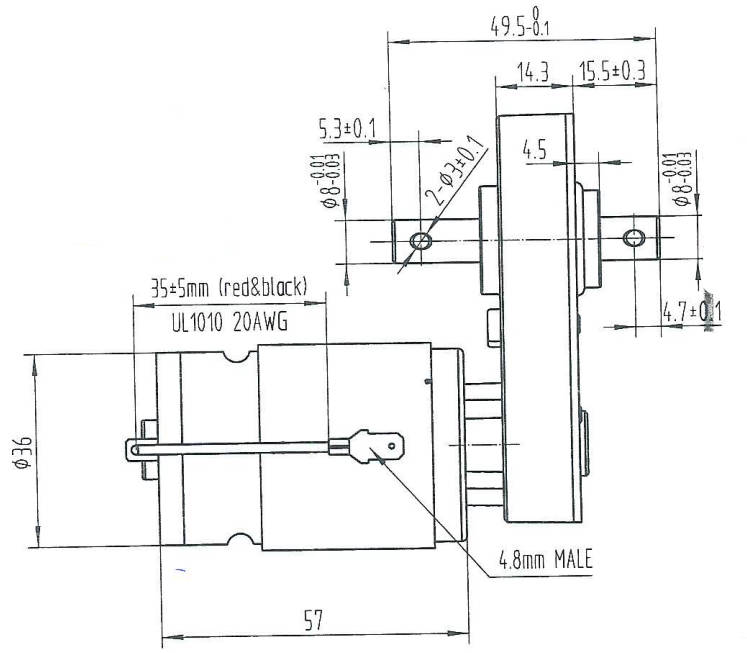

Through the characteristics of the change machine need to count, the design of dual output shaft, one end is used to drive the change system, one end is used for counting system, to solve the problem of inaccurate change amount.
